2SC5042 NPN Transistor

INCHANGE

Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC5042 .
NPN triple diffused planar silicon transistor. High Breakdown Voltage. High Switching Speed. 100% avalanche tested. Minimum Lot-t.

📥 Download Datasheet

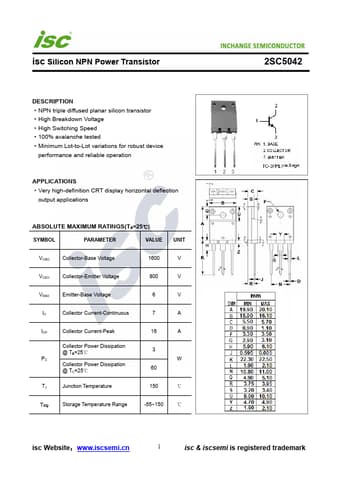

2SC5042 Datasheet Preview — Preview of 2SC5042 PDF

Datasheet Specifications

Part number: 2SC5042
Manufacturer: INCHANGE
File Size: 185.17 KB
Datasheet: 2SC5042-INCHANGE.pdf
Description: NPN Transistor

Applications

* Very high-definition CRT display horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 1600 V VCEO Collector-Emitter Voltage 800 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 7 A
