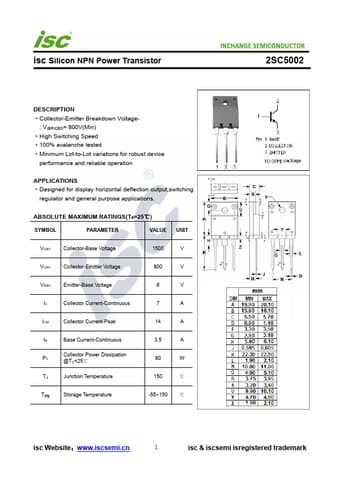

2SC5002 Datasheet, transistor equivalent, INCHANGE

PDF File Details

Part number:

2SC5002

Manufacturer:

INCHANGE

File Size:

178.28kb

Download:

📄 Datasheet

Description:

Npn transistor.

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 800V(Min)

High Switching Speed

100% avalanche tested

2SC5002 Application

• Applications
• Designed for display horizontal deflection output,switching regulator and general purpose applications. ABSOLUTE MAXIMUM RATI
