2SC5000 Datasheet - Toshiba Semiconductor

2SC5000 NPN TRANSISTOR

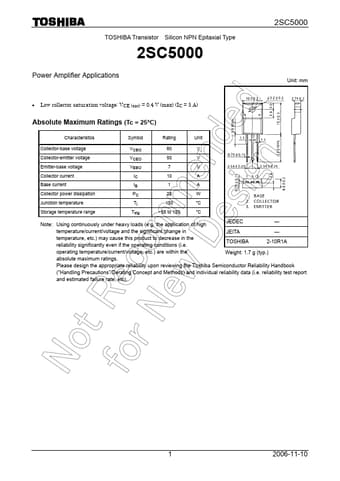

TOSHIBA Transistor Silicon NPN Epitaxial Type 2SC5000 Power Amplifier Applications 2SC5000 Unit: mm Low collector saturation voltage: VCE (sat) = 0.4 V (max) (IC = 5 A) Absolute Maximum Ratings (Tc = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 80 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 7 V Collector current IC 10 A Base current IB 1 A Collector power dissipation PC 25 W Junction temperature Tj 150 °C Storage tempera.

2SC5000_ToshibaSemiconductor.pdf
