2SC5002 NPN TRANSISTOR

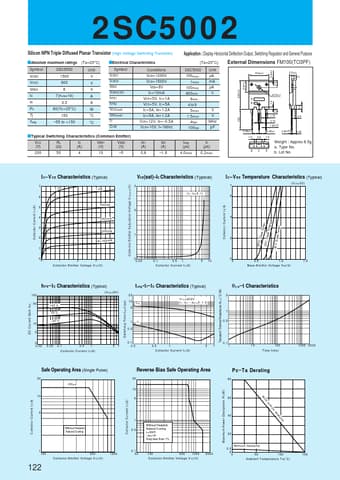

2SC5002 Silicon NPN Triple Diffused Planar Transistor (High Voltage Switchihg Transistor) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC5002 1500 800 6 7(Pulse14) 3.5 80(Tc=25°C) 150 55 to +150 Unit V V V A A W °C °C Application : Display Horizontal Deflection Output, Switching Regulator and General Purpose (Ta=25°C) 2SC5002 100max 1max 100max 800min 8min 4 to 9 5max 1.5max 4typ 100typ Unit µA mA µA V sElectrical Characteristics Symbol ICBO1 ICBO2 IEBO .
