2SC5101 NPN TRANSISTOR

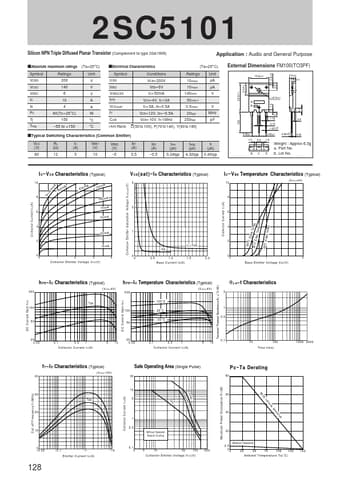

2SC5101 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1909) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO 200 V VCEO 140 V VEBO 6 V IC 10 A IB 4 A PC 80(Tc=25°C) W Tj 150 °C Tstg 55 to +150 °C sElectrical Characteristics (Ta=25°C) Symbol Conditions Ratings ICBO VCB=200V 10max IEBO VEB=6V 10max V(BR)CEO IC=50mA 140min hFE VCE=4V, IC=3A 50min∗ VCE(sat) IC=5A, IB=0.
