2SC5100 Datasheet - Sanken electric

2SC5100 NPN TRANSISTOR

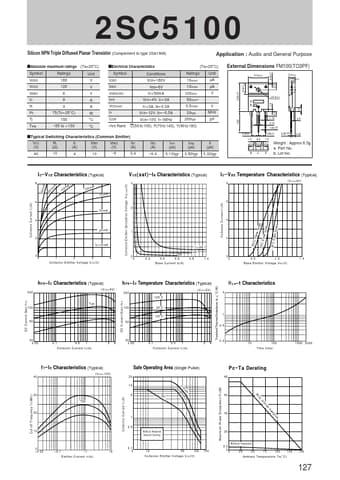

2SC5100 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1908) Application : Audio and General Purpose sAbsolute maximum ratings (Ta=25°C) Symbol Ratings Unit VCBO VCEO VEBO IC IB PC Tj Tstg 160 V 120 V 6 V 8 A 3 A 75(Tc=25°C) W 150 °C 55 to +150 °C sElectrical Characteristics (Ta=25°C) Symbol Conditions Ratings ICBO VCB=160V 10max IEBO VEB=6V 10max V(BR)CEO IC=50mA 120min hFE VCE=4V, IC=3A 50min∗ VCE(sat) IC=3A, IB=0.3A 0.5.
