* : High Braekdown Voltage : VcEO=100V (2SC510) : VCE0= 60V (2SC512) Various Uses for Medium Power : I c (Max.) =1.5A : P c (Max.) =800mW(Ta=25°C), 8W(Tc=25°C)
* Complementary to 2SA510 and 2SA512. MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL Collector-Base Voltage 2SC510 2SC512 V CB0
2SC510
120.51 KB
Silicon npn transistor.

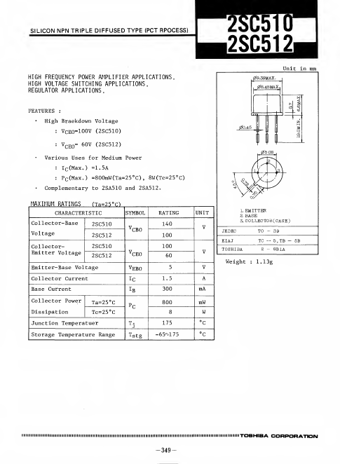

SILICON NPN TRIPLE DIFFUSED TYPE (PCT RPOCESS)
HIGH FREQUENCY POWER AMPLIFIER APPLICATIONS, HIGH VOLTAGE SWITCHING APPLICATIONS. REGULATOR APPLICATION.
