2SC503 - Silicon NPN Epitaxial Type Transistor

This page provides the datasheet information for the 2SC503, a member of the 2SC504 Silicon NPN Epitaxial Type Transistor family.

Datasheet Summary

Features

  • High Transition Frequency : fx=80MHz (Typ. ).
  • High Breakdown Voltage : VCEQ=80V (2SC503) : VCEO=60V (2SC504) . Complementary to 2SA503 and 2SA504. Unit in mm 09.39MAX. 08ASMA1( r 1 X < 5 d ^ I l ^0.45 a II 05.08.

📥 Download Datasheet

Datasheet preview – 2SC503

Datasheet Details

Part number 2SC503
Manufacturer Toshiba
File Size 128.20 KB
Description Silicon NPN Epitaxial Type Transistor
Datasheet download datasheet 2SC503 Datasheet
Additional preview pages of the 2SC503 datasheet.

📁 Similar Datasheet

  • 2SC5030 - NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC5032 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5034 - NPN Transistor (Panasonic Semiconductor)
  • 2SC5035 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5036 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5036A - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5037 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5037A - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5039 - NPN Transistor (ETC)
  • 2SC5000 - NPN TRANSISTOR (Toshiba Semiconductor)
Other Datasheets by Toshiba
  • 2SC504 - Silicon NPN Epitaxial Type Transistor
  • 2SC505 - SILICON NPN TRANSISTOR
  • 2SC506 - SILICON NPN TRANSISTOR
  • 2SC507 - SILICON NPN TRANSISTOR
  • 2SC510 - SILICON NPN TRANSISTOR
  • 2SC512 - SILICON NPN TRANSISTOR
  • 2SC5129 - Silicon NPN Transistor
  • 2SC519A - SILICON NPN TRANSISTOR

Full PDF Text Transcription

Click to expand full text

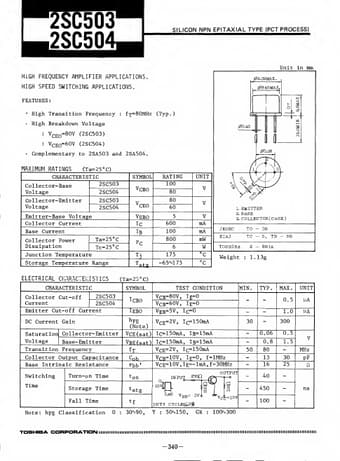

: 2SC503 2SC504 I SILICON NPN EPITAXIAL TYPE (PCT PROCESS) HIGH FREQUENCY AMPLIFIER APPLICATIONS. HIGH SPEED SWITCHING APPLICATIONS. FEATURES • High Transition Frequency : fx=80MHz (Typ.) • High Breakdown Voltage : VCEQ=80V (2SC503) : VCEO=60V (2SC504) . Complementary to 2SA503 and 2SA504. Unit in mm 09.39MAX. 08ASMA1( r 1 X < 5 d ^ I l ^0.45 a II 05.08 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base 2SC503 Voltage 2SC504 Collector- Emitter Voltage 2SC503 2SC504 Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Ta=25°C Tc=25°C Junction Temperature Storage Temperature Range SYMBOL v CBO V CEO vebo ic IB PC T i T Htg RATING 100 80 80 60 5 600 100 800 6 175 -65^175 UNIT V /] O kO // 3 I V 1. EMITTER V 2. BASE 3.
