2SC5107 NPN Transistor

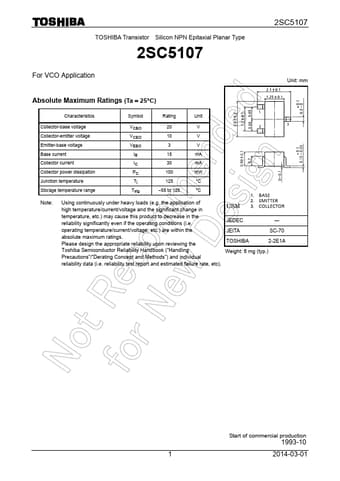

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5107 2SC5107 For VCO Application Unit: mm Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IB IC PC Tj Tstg 20 V 10 V 3 V 15 mA 30 mA 100 mW 125 °C 55 to 125 °C Note: Using continuously under h.
