* 3.0
* +00..24 4.4±0.5 14.4±0.5 10.0±0.3 1.5±0.1
* High-speed switching 1.5
* +00.4
* High collector-base voltage (Emitter open) VCBO
* Wide safe operation area
* Satisfactory linearity of forward current transfer ratio hFE
* N type package en
2SC5104
Panasonic Semiconductor
257.56 KB
Npn transistor.

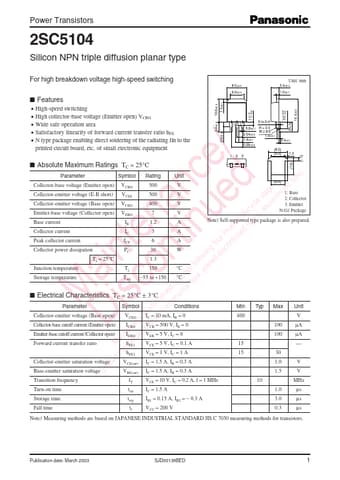

Power Transistors
2SC5104
Silicon NPN triple diffusion planar type
For high breakdown voltage high-speed switching
8.5±0.2
Unit: mm
3.4±0.3
6.0±0..
