2SC5106 Datasheet - Toshiba Semiconductor

2SC5106 - NPN TRANSISTOR

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5106 2SC5106 For VCO Application Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage Collector-emitter voltage Emitter-base voltage Base current Collector current Collector power dissipation Junction temperature Storage temperature range VCBO VCEO VEBO IB IC PC Tj Tstg 20 10 3 15 30 150 125 55 to 125 V V V mA mA mW °C °C Note: Using continuously under heavy loads (e.g.

the app

2SC5106_ToshibaSemiconductor.pdf

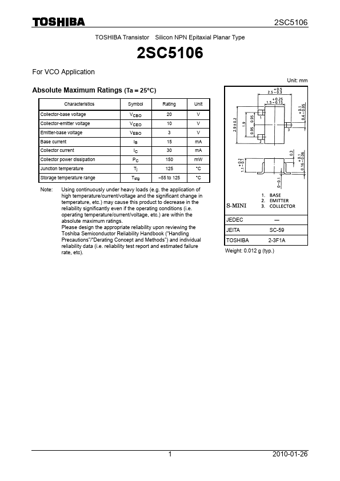

Preview of 2SC5106 PDF
2SC5106 Datasheet Preview Page 2 2SC5106 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC5106

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

328.39 KB

Description:

Npn transistor.
