Part number:
2SC5005
Manufacturer:
NEC
File Size:
55.00 KB
Description:
Npn transistor.

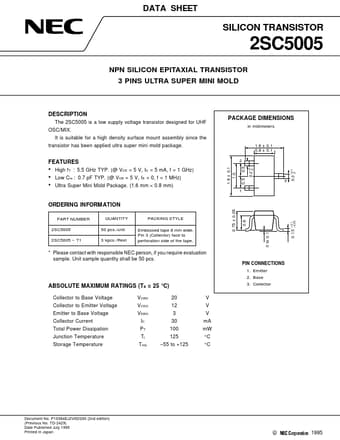

* High fT : 5.5 GHz TYP. (@ VCE = 5 V, IC = 5 mA, f = 1 GHz) Low Cre : 0.7 pF TYP. (@ VCB = 5 V, IE = 0, f = 1 MHz) Ultra Super Mini Mold Package. (1.6 mm × 0.8 mm) 0.5 3 1 ORDERING INFORMATION 0.6 PART NUMBER 2SC5005 2SC5005
* T1 QUANTITY 50 pcs./unit 3 k
2SC5005
NEC
55.00 KB
Npn transistor.
