Part number:
2SC5004
Manufacturer:
NEC
File Size:
54.38 KB
Description:
Npn transistor.

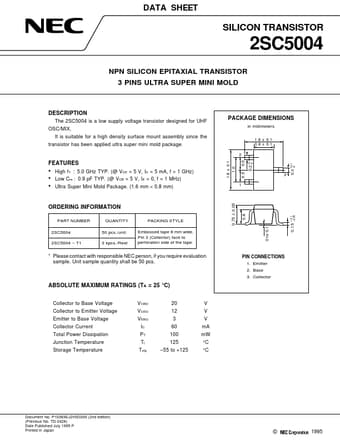

* 0.5 High fT : 5.0 GHz TYP. (@ VCE = 5 V, IC = 5 mA, f = 1 GHz) Low Cre : 0.9 pF TYP. (@ VCB = 5 V, IE = 0, f = 1 MHz) Ultra Super Mini Mold Package. (1.6 mm × 0.8 mm) 1.6 ± 0.1 1.0 0.2+0.1
* 0 0.5 3 1 ORDERING INFORMATION PART NUMBER 2SC5004 2SC5004
2SC5004
NEC
54.38 KB
Npn transistor.
