Datasheet Details
- Part number
- 2SC5043
- Manufacturer
- INCHANGE
- File Size
- 185.89 KB
- Datasheet
- 2SC5043-INCHANGE.pdf
- Description
- NPN Transistor
2SC5043 Description

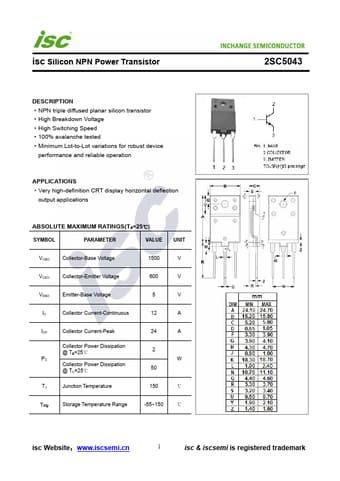

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC5043 .
NPN triple diffused planar silicon transistor.
High Breakdown Voltage.
High Switching Speed.
100% avalanche tested.
Minimum Lot-t.
2SC5043 Applications
* Very high-definition CRT display horizontal deflection
output applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO
Collector-Base Voltage
1500
V
VCEO
Collector-Emitter Voltage
600
V
VEBO
Emitter-Base Voltage
5
V
IC
Collector Current-Continuous
12
A
