* High speed (tf=100ns typ).
* High reliability (HVP process).
* High breakdown voltage (VCBO=1600V).
* Adoption of MBIT process. Package Dimensions unit:mm 2039D [2SC5042] 16.0 3.4 5.6 3.1 5.0 8.0 22.0 2.0 21.0 4.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Paramet
2SC5042
Sanyo Semicon Device
100.47 KB
Npn transistor.

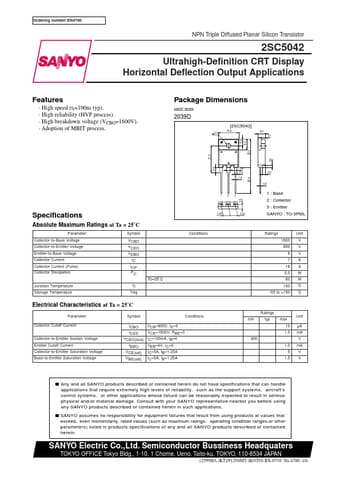

Ordering number:EN4780
NPN Triple Diffused Planar Silicon Transistor
2SC5042
Ultrahigh-Definition CRT Display Horizontal Deflection Output Applicatio.
