2SC5049

NPN TRANSISTOR

2SC5049 Features

* High gain bandwidth product fT = 10 GHz Typ

* High gain, low noise figure PG = 15.0 dB Typ, NF = 1.2 dB Typ at f = 900 MHz Outline MPAK 3 1 2 1. Emitter 2. Base 3. Collector 2SC5049 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage

2SC5049 Datasheet (24.25 KB)

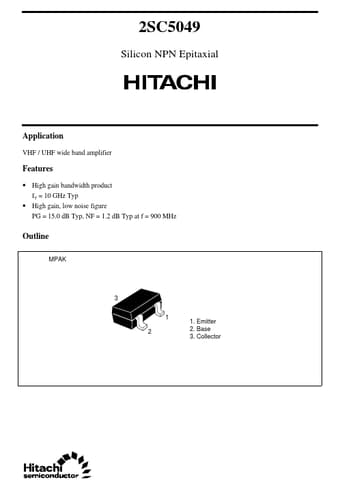

Preview of 2SC5049 PDF

Datasheet Details

Part number:

2SC5049

Manufacturer:

Hitachi Semiconductor

File Size:

24.25 KB

Description:

Npn transistor.
