2SD1541 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1541

Manufacturer:

INCHANGE

File Size:

206.32kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • Collector-Base Breakdown Voltage- : VCBO= 1300V (Min)
  • High Switching Speed
  • Built-in Damper Diode

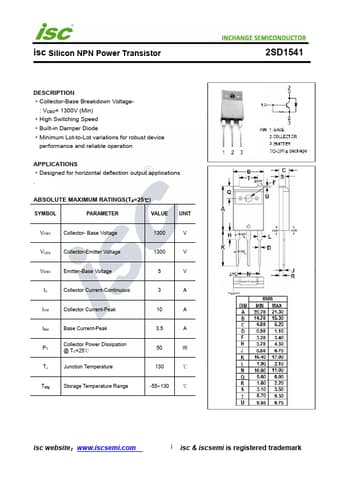

  • Datasheet Preview: 2SD1541 📥 Download PDF (206.32kb)
    Page 2 of 2SD1541

    2SD1541 Application

    • Applications
    • Designed for horizontal deflection output applications . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VC
