2SK2071-01L - N-Channel MOSFET

Product Overview

📥 Download Datasheet

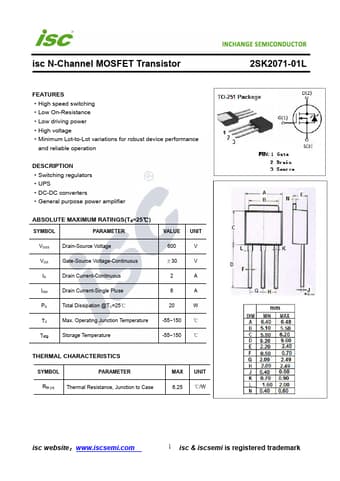

Datasheet preview – 2SK2071-01L

Datasheet Details

Part number 2SK2071-01L
Manufacturer INCHANGE
File Size 196.67 KB
Description N-Channel MOSFET
Datasheet download datasheet 2SK2071-01L Datasheet
Additional preview pages of the 2SK2071-01L datasheet.

Product details

Description

Switching regulators UPS DC-DC converters General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDSS Drain-Source Voltage VGS Gate-Source Voltage-Continuous ID Drain Current-Continuous IDM Drain Current-Single Pluse PD Total Dissipation @TC=25℃ TJ Max.Operating Junction Temperature Tstg Storage Temperature VALUE UNIT 600 V ±30 V 2 A 6 A 20 W -55~150 ℃ -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Ther

Features
