2SK2221, N-Channel MOSFET

isc N-Channel MOSFET Transistor INCHANGE Semiconductor 2SK2221 *.

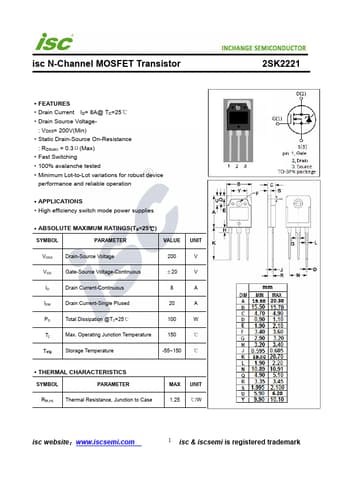

datasheet Preview Page 1 from Datasheet4u.com

2SK2221-INCHANGE.pdf

2SK2221 Datasheet Preview — Preview of 2SK2221 PDF

Datasheet Details

Part number:

2SK2221

Manufacturer:

INCHANGE

File Size:

207.31 KB

Description:

N-Channel MOSFET

Features

* Drain Current ID= 8A@ TC=25℃
* Drain Source Voltage- : VDSS= 200V(Min)
* Static Drain-Source On-Resistance : RDS(on) = 0.3Ω(Max)
* Fast Switching
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

Applications

* High efficiency switch mode power supplies
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 200 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 8 A IDM Drain Current-Single Plused 20 A PD Total Dissipation
