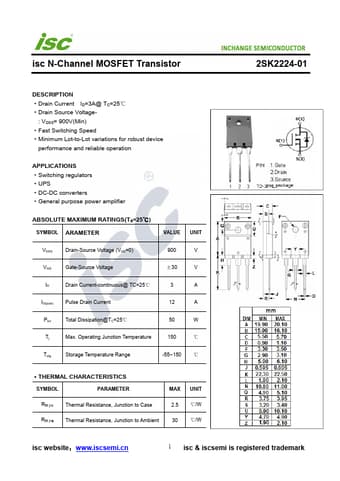

2SK2224-01 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK2224-01

Manufacturer:

Inchange Semiconductor

File Size:

222.49kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Drain Current ID=3A@ TC=25℃

Drain Source Voltage- : VDSS= 900V(Min)

Fast Switching Speed

Minimum

2SK2224-01 Application

• Applications
• Switching regulators
• UPS
• DC-DC converters
• General purpose power amplifier ABSOLUTE MAXIMUM RATINGS

TAGS

2SK2224-01

Inchange Semiconductor
