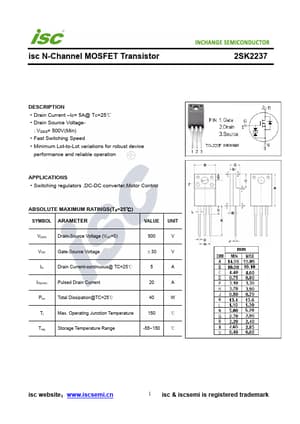

datasheet Preview Page 1 from Datasheet4u.com

2SK2237 N-Channel MOSFET Transistor

isc N-Channel MOSFET Transistor .
Drain Current. ID= 5A@ TC=25℃. Drain Source Voltage- : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations f.

2SK2237-InchangeSemiconductor.pdf

Preview of 2SK2237 PDF
datasheet Preview Page 2

Datasheet Details

Part number:

2SK2237

Manufacturer:

Inchange Semiconductor

File Size:

209.53 KB

Description:

N-Channel MOSFET Transistor

Applications

* Switching regulators ,DC-DC converter,Motor Control ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5 A ID(puls) Pulsed Drain Current 20 A Ptot Total Dissipa
