2SK2200 Datasheet - Toshiba Semiconductor

2SK2200 Silicon N Channel MOS Type Field Effect Transistor

2SK2200 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2200 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z 4-V gate drive z Low drain source ON resistance : RDS (ON) = 0.28 Ω (typ.) z High forward transfer admittance : |Yfs| = 3.5 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 100 V) z Enhancement mode : Vth = 0.8~2.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Charac.

2SK2200_ToshibaSemiconductor.pdf

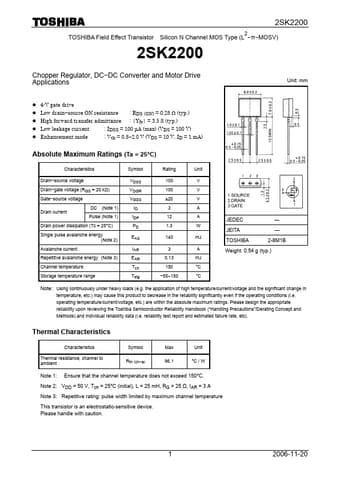

Preview of 2SK2200 PDF
2SK2200 Datasheet Preview Page 2 2SK2200 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2200

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

730.80 KB

Description:

Silicon n channel mos type field effect transistor.
