2SK2229 Datasheet - Toshiba Semiconductor

2SK2229 Silicon N-Channel MOSFET

2SK2229 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L2 π MOSV) 2SK2229 Chopper Regulator, DC DC Converter and Motor Drive Applications Unit: mm z 4-V gate drive z Low drain source ON resistance : RDS (ON) = 0.12 Ω (typ.) z High forward transfer admittance : |Yfs| = 5.0 S (typ.) z Low leakage current : IDSS = 100 μA (max) (VDS = 60 V) z Enhancement mode : Vth = 0.8 to 2.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings (Ta = 25°C) Ch.

2SK2229 Features

* tly prohibited except in compliance with all applicable export laws and regulations.

* Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations

2SK2229 Datasheet (383.02 KB)

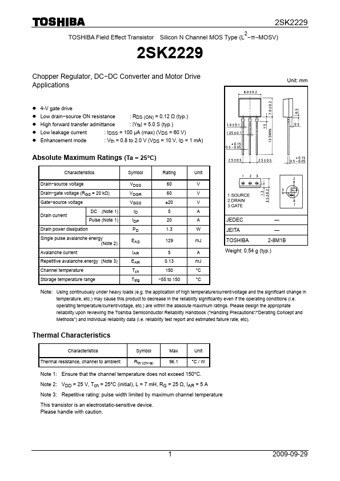

Preview of 2SK2229 PDF
2SK2229 Datasheet Preview Page 2 2SK2229 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2229

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

383.02 KB

Description:

Silicon n-channel mosfet.
