2SK2233 Datasheet - Toshiba Semiconductor

2SK2233_ToshibaSemiconductor.pdf

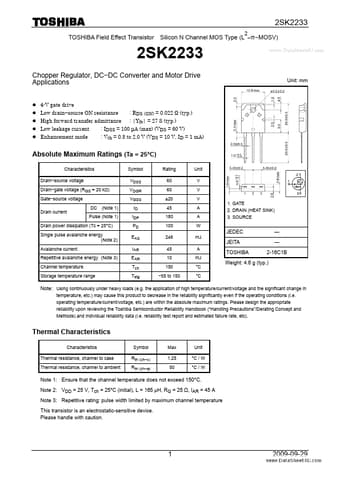

Preview of 2SK2233 PDF
2SK2233 Datasheet Preview Page 2 2SK2233 Datasheet Preview Page 3

Datasheet Details

Part number:

2SK2233

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

458.34 KB

Description:

N-channel mosfet.

2SK2233, N-Channel MOSFET

2SK2233 TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (L π MOSV) 2 2SK2233 Chopper Regulator, DC DC Converter and Motor Drive Applications z 4-V gate drive z Low drain source ON resistance z High forward transfer admittance z Low leakage current z Enhancement mode : RDS (ON) = 0.022 Ω (typ.) : |Yfs| = 27 S (typ.) www.DataSheet4U.com Unit: mm : IDSS = 100 μA (max) (VDS = 60 V) : Vth = 0.8 to 2.0 V (VDS = 10 V, ID = 1 mA) Absolute Maximum Ratings

2SK2233 Features

* ls as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA assumes no liability for damag
