2SK2207 Datasheet - Sanken electric

2SK2207 MOSFET

2SK2207 Absolute Maximum Ratings Symbol VDSS VGSS ID ID (pulse) 1 PD EAS 2 I AS Tch Tstg Ratings 900 ± 30 ±3 ± 12 35 (Tc = 25ºC) 280 3 150 55 to +150 (Ta = 25ºC) External dimensions 1 FM20 Electrical Characteristics Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS (on) Ciss Coss Crss t on t off 2.0 1.0 3.0 2.0 3.8 630 120 52 55 165 5.0 min 900 ± 100 100 4.0 Ratings typ max Unit V nA µA V S Ω pF pF pF ns ns I D = 1.5A, VDD 250V, RL = 167Ω, VGS = 10V, See Figure 2 on Page 5. VDS .

2SK2207 Datasheet (36.14 KB)

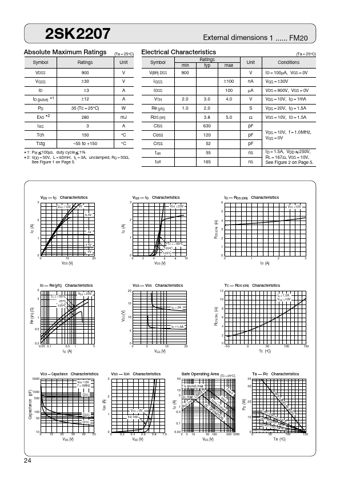

Preview of 2SK2207 PDF

Datasheet Details

Part number:

2SK2207

Manufacturer:

Sanken ↗ electric

File Size:

36.14 KB

Description:

Mosfet.
