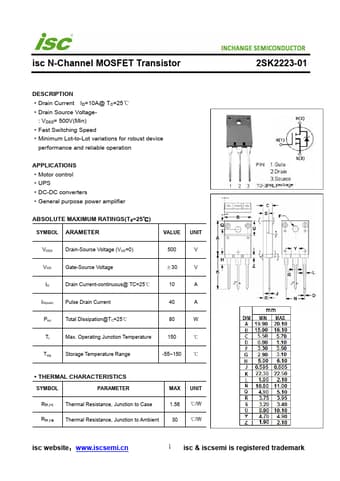

2SK2223-01 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SK2223-01

Manufacturer:

Inchange Semiconductor

File Size:

199.17kb

Download:

📄 Datasheet

Description:

N-channel mosfet transistor.

Drain Current ID=10A@ TC=25℃

Drain Source Voltage- : VDSS= 500V(Min)

Fast Switching Speed

Minimum

2SK2223-01 Application

• Applications
• Motor control
• UPS
• DC-DC converters
• General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃
