2SK2220 - Silicon N-Channel MOSFET

Product Overview

Hitachi Semiconductor

📥 Download Datasheet

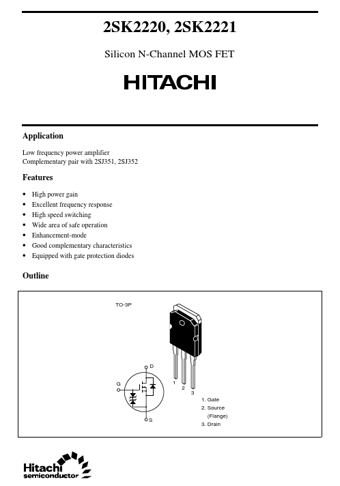

2SK2220 Silicon N-Channel MOSFET by Hitachi Semiconductor - Datasheet Preview — Datasheet preview – 2SK2220

Datasheet Details

Part number	2SK2220
Manufacturer	Hitachi Semiconductor
File Size	39.84 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK2220 Datasheet
Additional preview pages of the 2SK2220 datasheet.

Product details

Features

High power gain Excellent frequency response High speed switching Wide area of safe operation Enhancement-mode Good complementary characteristics Equipped with gate protection diodes Outline TO-3P D G 1 2 3 1. Gate 2. Source (Flange) 3. Drain S 2SK2220, 2SK2221 Absolute Maximum Ratings (Ta = 25°C) Item Drain to source voltage 2SK2220 2SK2221 Gate to source voltage Drain current Body to drain diode reverse drain current Ch.
