2SK2257-01 - N-Channel MOSFET

2SK2257-01 Description

isc N-Channel MOSFET Transistor 2SK2257-01 .
Drain Current ID= 17A@ TC=25℃. Drain Source Voltage- : VDSS= 500V(Min). Fast Switching Speed. Minimum Lot-to-Lot variations for robus.

2SK2257-01 Applications

* Switching regulators
* UPS
* DC-DC converters
* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 500 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 17 A ID(puls) Pulsed Dra

📥 Download Datasheet

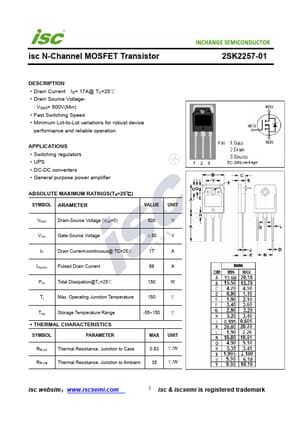

Preview of 2SK2257-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK2257-01
Manufacturer
INCHANGE
File Size
217.53 KB
Datasheet
2SK2257-01-INCHANGE.pdf
Description
N-Channel MOSFET
