2SK3530 - N-Channel MOSFET

2SK3530 Description

isc N-Channel MOSFET Transistor *.

2SK3530 Features

* With TO-220F packaging
* High speed switching
* Standard level gate drive
* Easy to use
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

2SK3530 Applications

* Power supply
* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 800 VGSS Gate-Source Voltage ±30 ID Drain Current-Continuous 7 IDM Drain Current-Single Pulsed 28 PD Total Dissipation 70 Tj Operating Junction Te

📥 Download Datasheet

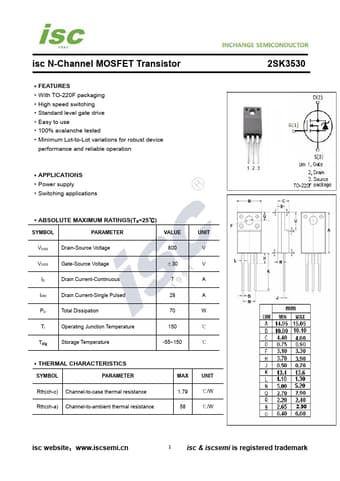

Preview of 2SK3530 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK3530
Manufacturer
INCHANGE
File Size
184.96 KB
Datasheet
2SK3530-INCHANGE.pdf
Description
N-Channel MOSFET
