BD244A, BD244, PNP Transistor

isc Silicon PNP Power Transistor BD244/A/B/C .
DC Current Gain -hFE =30(Min)@ IC= -0. Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -45V(Min)- BD243; -60V(Min)- BD243A -80V(Min)-.

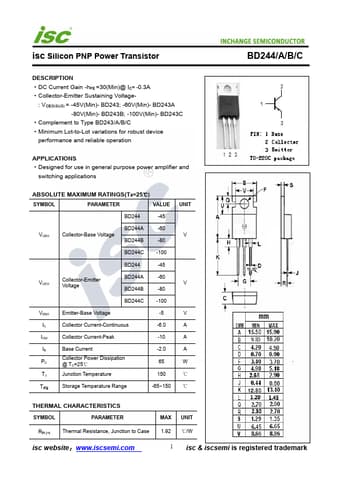

datasheet Preview Page 1 from Datasheet4u.com

BD244-INCHANGE.pdf

BD244A Datasheet Preview — This datasheet PDF includes multiple part numbers: BD244A, BD244. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD244A, BD244

Manufacturer:

INCHANGE

File Size:

208.45 KB

Description:

PNP Transistor

Note:

This datasheet PDF includes multiple part numbers: BD244A, BD244.
Please refer to the document for exact specifications by model.

Applications

* Designed for use in general purpose power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD244 -45 BD244A -60 VCBO Collector-Base Voltage V BD244B -80 BD244C -100 BD244 -45 VCEO Collector-Emitter Voltage BD244A -60 V BD24
