BD947F, BD943F, NPN Transistor

isc Silicon NPN Power Transistor BD943F/945F/947F .
DC Current Gain- : hFE= 85(Min)@ IC= 500mA. Complement to Type BD944F/946F/948F. Minimum Lot-to-Lot variations for robust device performa.

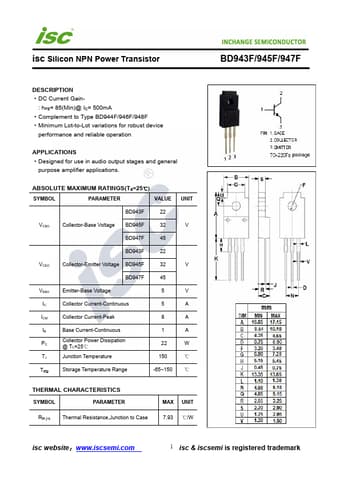

datasheet Preview Page 1 from Datasheet4u.com

BD943F-INCHANGE.pdf

BD947F Datasheet Preview — This datasheet PDF includes multiple part numbers: BD947F, BD943F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD947F, BD943F

Manufacturer:

INCHANGE

File Size:

210.94 KB

Description:

NPN Transistor

Note:

This datasheet PDF includes multiple part numbers: BD947F, BD943F.
Please refer to the document for exact specifications by model.

Applications

* Designed for use in audio output stages and general purpose amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD943F 22 VCBO Collector-Base Voltage BD945F 32 V BD947F 45 BD943F 22 VCEO Collector-Emitter Voltage BD945F 32 V BD947F 45 VEBO
