BD9478F - PWM pulse Generator

BD9478F is PWM pulse generator for LCD panel.

This IC compares triangle waveform which is generated inside IC and external DC signal, and generates a PWM pulse.

This PWM pulse is provided to LED driver and controls LED grayscale.

PWM pulse frequency can be synchronized to external signal frequency i

BD9478F Features

* The signal that the frequency synchronizes with the

* VSYNC signal is output to PWMOUT. The PWM pulse is generated with the DC signal

BD9478F-ROHM.pdf

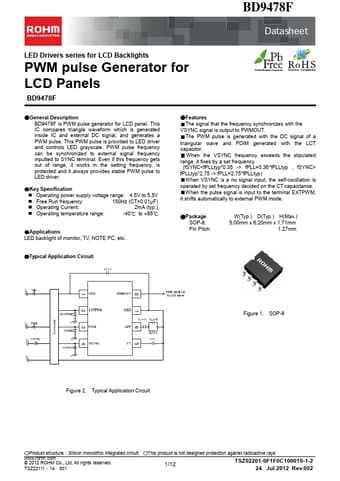

Preview of BD9478F PDF
