BDT61CF NPN Transistor

INCHANGE

Description

isc Silicon NPN Darlington Power Transistor INCHANGE Semiconductor BDT61CF .
High DC Current Gain. Low Saturation Voltage. Complement to Type BDT60CF. Minimum Lot-to-Lot variations for robust device performance.

📥 Download Datasheet

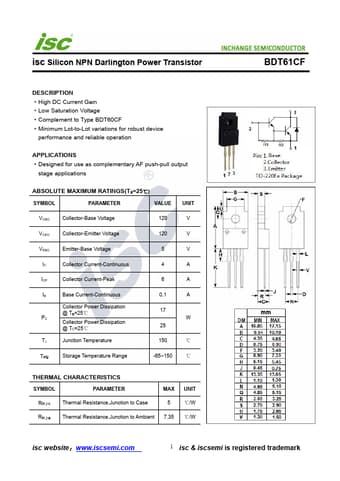

BDT61CF Datasheet Preview — Preview of BDT61CF PDF

Datasheet Specifications

Part number: BDT61CF
Manufacturer: INCHANGE
File Size: 209.04 KB
Datasheet: BDT61CF-INCHANGE.pdf
Description: NPN Transistor

Applications

* Designed for use as complementary AF push-pull output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 120 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous 4 A IC
