BT136S-800 Datasheet - INCHANGE

Triac

BT136S-800 Features

* General purpose motor control

* General purpose switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDRM Repetitive peak off-state voltage IT(RMS) RMS on-state current (full sine wave;Tmb≤107℃) ITSM Non-repetitive peak on-state current(Tj=25℃;Tp=20ms) I2t I2t for fusing tp=10m

BT136S-800 General Description

*High blocking voltage capability *Surface-mountable package *Low holding current for low current loads and lowest EMI at commutation. *Triggering in all four quadrants *Very sensitive gate *Minimum Lot-to-Lot variations for robust device performance and reliable operation F.

BT136S-800 Datasheet (197.66 KB)

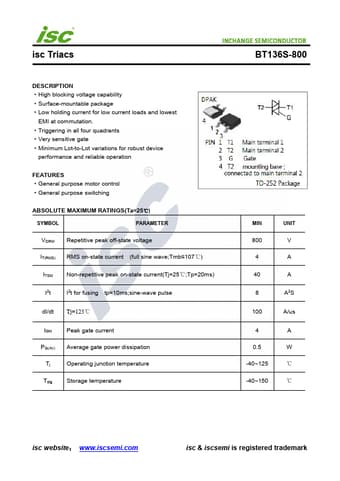

Preview of BT136S-800 PDF

Datasheet Details

Part number:

BT136S-800

Manufacturer:

INCHANGE

File Size:

197.66 KB

Description:

Triac.
