BT136S-600D

Triacs

BT136S-600D Features

* General purpose motor control

* General purpose switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VDRM IT(RMS) Repetitive peak off-state voltage RMS on-state current (full sine wave;Tmb≤107℃) Non-repetitive peak on-state current(Tj=25℃;Tp=20ms) ITSM Non-repetitive peak on-sta

BT136S-600D General Description

*High blocking voltage capability *Surface-mountable package *Low holding current for low current loads and lowest EMI at commutation. *Triggering in all four quadrants *Very sensitive gate *Minimum Lot-to-Lot variations for robust device performance and reliable operation F.

BT136S-600D Datasheet (182.49 KB)

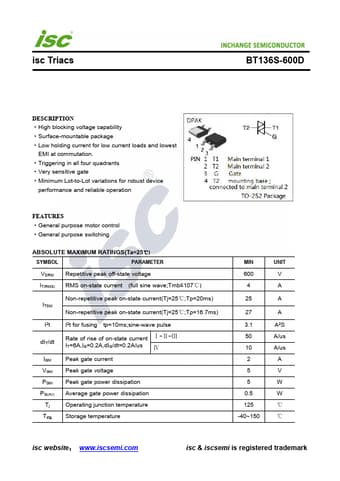

Preview of BT136S-600D PDF

Datasheet Details

Part number:

BT136S-600D

Manufacturer:

INCHANGE

File Size:

182.49 KB

Description:

Triacs.
