BU2508A NPN Transistor

BU2508A Description

isc Silicon NPN Power Transistor BU2508A .
Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 700V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device perf.

BU2508A Applications

* Designed for use in horizontal deflection circuits of color TV receivers. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector- Emitter Voltage(VBE= 0) 1500 V VCEO Collector-Emitter Voltage 700 V VEBO Emitter-Base Voltage 7.5 V IC Collector Current- Cont

📥 Download Datasheet

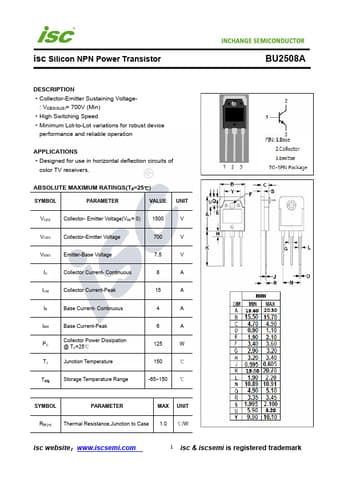

Preview of BU2508A PDF
datasheet Preview Page 2

Datasheet Details

Part number
BU2508A
Manufacturer
INCHANGE
File Size
212.06 KB
Datasheet
BU2508A-INCHANGE.pdf
Description
NPN Transistor
