BU2508-E3 Bridge Rectifiers

BU2508-E3 Description

BU2506-E3, BU2508-E3, BU2510-E3 www.vishay.com Vishay General Semiconductor Enhanced isoCink+™ Bridge Rectifiers .

BU2508-E3 Features

* UL recognition file number E309391 (QQQX2) UL 1557 (see
* )
* Thin single in-line package
* Available for BU-5S lead forming option (part number with “5S” suffix, e. g. BU25065S)
* Superior thermal conductivity
* Solder dip 275 °C max. 10 s, per JESD 22-B1

BU2508-E3 Applications

* + ~ ~ - General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances and white-goods applications.
* Tested to UL standard for safety electrically isolated semiconductor devices. UL 1557 4th edition.  Dielectric tested to maximum case, storage and

📥 Download Datasheet

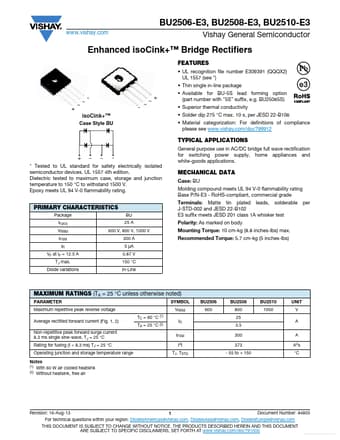

Preview of BU2508-E3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
