BU2506-M3 Bridge Rectifiers

BU2506-M3 Description

www.vishay.com BU2506-M3, BU2508-M3, BU2510-M3 Vishay General Semiconductor Enhanced isoCink+TM Bridge Rectifiers isoCink+™ + ~~ - Case Style BU -.

BU2506-M3 Features

* UL recognition file number E309391 (QQQX2) UL 1557 (see
* )
* Thin single in-line package
* Available for BU-5S lead forming option (part number with “5S” suffix, e. g. BU25065S)
* Superior thermal conductivity
* Solder dip 275 °C max. 10 s, per JESD 22-B1

BU2506-M3 Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances and white-goods applications. MECHANICAL DATA Case: BU Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Terminals: Matte tin

📥 Download Datasheet

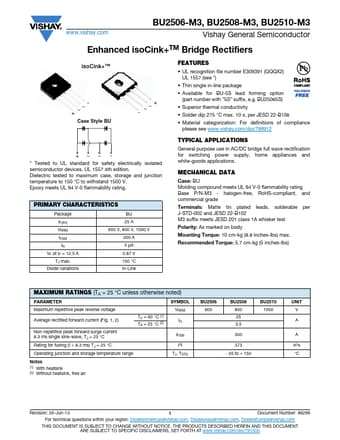

Preview of BU2506-M3 PDF
