BU2506 Bridge Rectifiers

BU2506 Description

www.vishay.com BU2506, BU2508, BU2510 Vishay General Semiconductor Enhanced isoCink+™ Bridge Rectifiers + ~~ isoCink+™ Case Style BU - ~~+ +~~ - .

BU2506 Features

* UL recognition file number E312394
* Thin single in-line package
* Glass passivated chip junction
* Superior thermal conductivity Available
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance pleas

BU2506 Applications

* General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances and white-goods applications. MECHANICAL DATA Case: BU Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N-M3 - halogen-free, RoHS-complian

📥 Download Datasheet

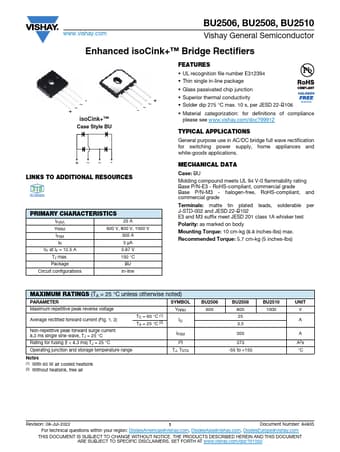

Preview of BU2506 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BU2506
Manufacturer
Vishay ↗
File Size
114.21 KB
Datasheet
BU2506-Vishay.pdf
Description
Bridge Rectifiers
