BU305F, BU304F NPN Transistor

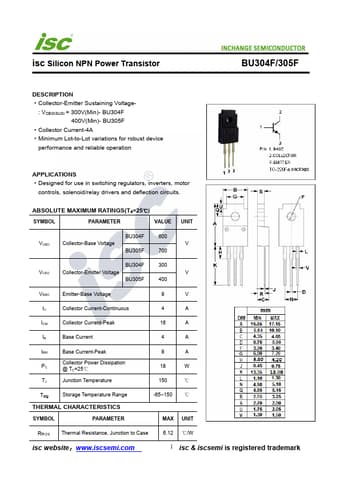

📥 Download Datasheet  Datasheet Preview Page 1

Description

INCHANGE Semiconductor isc Silicon NPN Power Transistor isc Product Specification BU304F/305F .
Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 300V(Min)- BU304F 400V(Min)- BU305F. Collector Current-4A. Minimum Lot-to-Lot variati.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BU305F, BU304F. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
BU305F, BU304F
Manufacturer
INCHANGE
File Size
209.22 KB
Datasheet
BU304F-INCHANGE.pdf
Description
NPN Transistor
Note
This datasheet PDF includes multiple part numbers: BU305F, BU304F.
Please refer to the document for exact specifications by model.

Applications

* Designed for use in switching regulators, inverters, motor controls, solenoid/relay drivers and deflection circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BU304F 600 VCBO Collector-Base Voltage V BU305F 700 BU304F 300 VCEO Collector-Emitter Voltage V BU3
