BU3087FV, Spread-Spectrum Clock Generator

Datasheet Built in VCXO, Spread-Spectrum Clock Generator BU3087FV *.
BU3087FV has built in VCXO that is necessary for the Digital-TV signal reception.

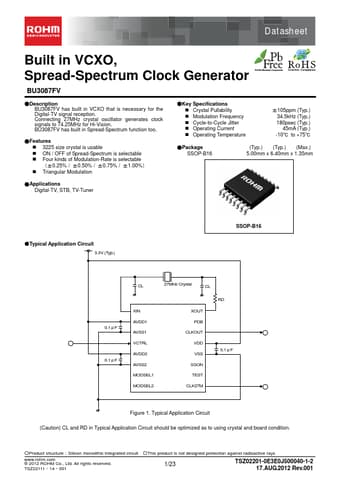

datasheet Preview Page 1 from Datasheet4u.com

BU3087FV-ROHM.pdf

BU3087FV Datasheet Preview — Preview of BU3087FV PDF

Datasheet Details

Part number:

BU3087FV

Manufacturer:

ROHM ↗

File Size:

544.41 KB

Description:

Spread-Spectrum Clock Generator

Features

* 3225 size crystal is usable
* ON / OFF of Spread-Spectrum is selectable
* Four kinds of Modulation-Rate is selectable （±0.25% / ±0.50% / ±0.75% / ±1.00%）
* Triangular Modulation
* Key Specifications
* Crystal Pullability
* Modulation Frequency

Applications

* Digital-TV, STB, TV-Tuner
* Typical Application Circuit 3.3V (Typ. ) SSOP-B16 0.1μF 0.1μF CL 27MHz Crystal CL XIN AVDD1 AVSS1 VCTRL AVDD2 AVSS2 MODSEL1 MODSEL2 XOUT PDB CLKOUT VDD
