DMNH4006SK3 - N-Channel MOSFET

INCHANGE

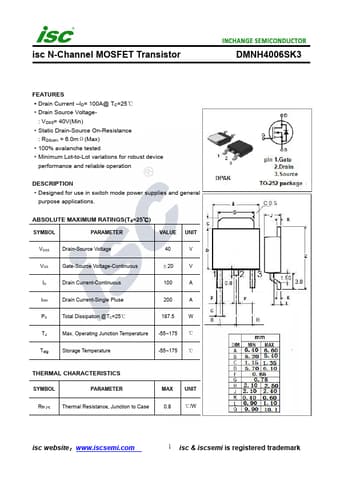

DMNH4006SK3 Datasheet Preview — Preview of DMNH4006SK3 PDF

Datasheet Details

Part number	DMNH4006SK3
Manufacturer	INCHANGE
File Size	261.18 KB
Description	N-Channel MOSFET
Datasheet	DMNH4006SK3-INCHANGE.pdf

DMNH4006SK3 Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 40 V ±20 V ID Drain Current-Continuous 100 A IDM Drain Current-Single Pluse 200 A PD Total Dissipation @TC=25℃ 187.5 W TJ Max.Operating Junction Temperature -55~175 ℃ Tstg Storage Temperature -55~175 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c

Features

Drain Current.
ID= 100A@ TC=25℃.
Drain Source Voltage- : VDSS= 40V(Min).
Static Drain-Source On-Resistance : RDS(on) = 6.0mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
