DMT6010SCT - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	DMT6010SCT
Manufacturer	INCHANGE
File Size	257.02 KB
Description	N-Channel MOSFET

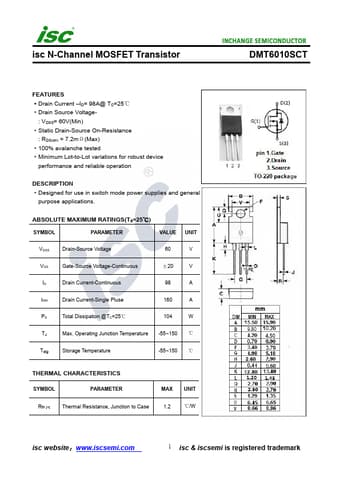

Datasheet	DMT6010SCT Datasheet
Additional preview pages of the DMT6010SCT datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 60 V ±20 V ID Drain Current-Continuous 98 A IDM Drain Current-Single Pluse 160 A PD Total Dissipation @TC=25℃ 104 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Th

Features

Drain Current.
ID= 98A@ TC=25℃.
Drain Source Voltage- : VDSS= 60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 7.2mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
