DMT6009LCT - N-Channel MOSFET

Product Overview

INCHANGE

Datasheet Details

Part number	DMT6009LCT
Manufacturer	INCHANGE
File Size	256.80 KB
Description	N-Channel MOSFET
Datasheet	DMT6009LCT Datasheet

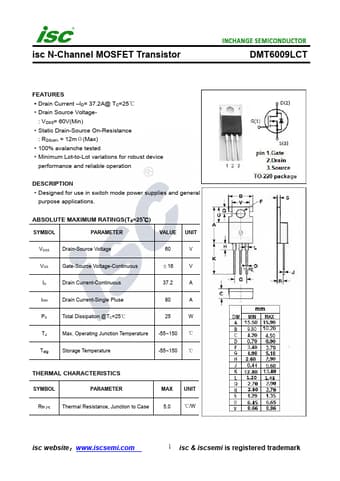

Additional preview pages of the DMT6009LCT datasheet.

Product details

Description

Designed for use in switch mode power supplies and general purpose applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 60 V ±16 V ID Drain Current-Continuous 37.2 A IDM Drain Current-Single Pluse 80 A PD Total Dissipation @TC=25℃ 25 W TJ Max.Operating Junction Temperature -55~150 ℃ Tstg Storage Temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rth j-c Th

Features

Drain Current.
ID= 37.2A@ TC=25℃.
Drain Source Voltage- : VDSS= 60V(Min).
Static Drain-Source On-Resistance : RDS(on) = 12mΩ(Max).
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
