DMT6009LSS Datasheet - Diodes

N-Channel MOSFET

DMT6009LSS Features

* 100% Unclamped Inductive Switch (UIS) Test in Production

* High Conversion Efficiency

* Low RDS(ON)

* Ensures On State Losses Are Minimized

* Excellent Qgd x RDS(ON) Product (FOM)

* Advanced Technology for DC-DC Converters

* Totally Lead-Free & Fully RoHS Compliant

DMT6009LSS General Description

and Applications This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications. * Power Management Functions * DC-DC Converters * Backlighting SO-8 .

DMT6009LSS Datasheet (454.21 KB)

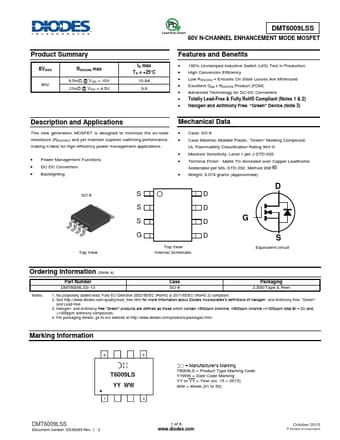

DMT6009LSS Datasheet Preview — Preview of DMT6009LSS PDF

Datasheet Details

Part number:

DMT6009LSS

Manufacturer:

DIODES ↗

File Size:

454.21 KB

Description:

N-channel mosfet.
ADVANCE INNEFWORPRMOADTIUOCNT DMT6009LSS 60V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 60V RDS(ON) max 9.5mΩ @ VGS = 10V 12mΩ @ VGS .
