DMT6009LFG, N-Channel MOSFET

ADVNAENWCEP IRNNOEFDWOURPCRTMOADTIUOCNT Product Summary V(BR)DSS 60V RDS(ON) Max 10mΩ @ VGS = 10V 11.7mΩ @ VGS = 4.5V ID Max TC = +25°C 34A 31.5A .
This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high-efficienc.

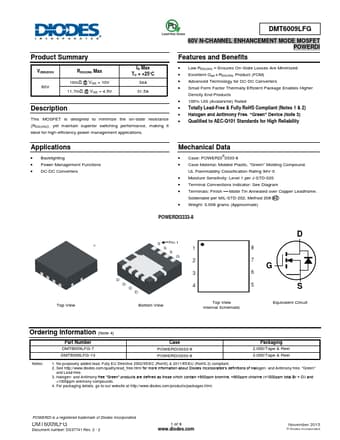

datasheet Preview Page 1 from Datasheet4u.com

DMT6009LFG-Diodes.pdf

DMT6009LFG Datasheet Preview — Preview of DMT6009LFG PDF

Datasheet Details

Part number:

DMT6009LFG

Manufacturer:

DIODES ↗

File Size:

411.85 KB

Description:

N-Channel MOSFET

Features

* Low RDS(ON)
* Ensures On-State Losses Are Minimized
* Excellent Qgd x RDS(ON) Product (FOM)
* Advanced Technology for DC-DC Converters
* Small Form Factor Thermally Efficient Package Enables Higher Density End Products
* 100% UIS (Avalanche) Rated
* Totally Lead-Fre
