FCB110N65F Datasheet, Mosfet, INCHANGE

FCB110N65F Features

• Mosfet
• Drain Current
    –ID= 35A@ TC=25℃
• Drain Source Voltage- : VDSS= 650V(Min)
• Static Drain-Source On-Resistance : RDS(on) = 110mΩ(Max)
• 100%

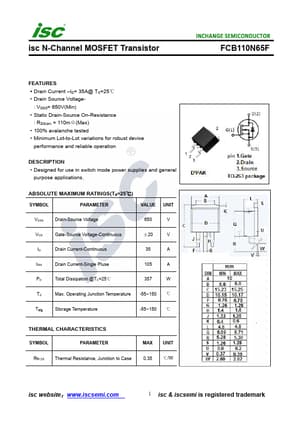

PDF File Details

Part number:

FCB110N65F

Manufacturer:

INCHANGE

File Size:

249.72kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

Designed for use in switch mode power supplies and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL

FCB110N65F Application

• Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 650
