FQA8N100C - N-Channel MOSFET

Features

With TO-3PN packaging.
High speed switching.
Standard level gate drive.
Easy to use.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.

INCHANGE

Datasheet Details

Part number	FQA8N100C
Manufacturer	INCHANGE
File Size	206.04 KB
Description	N-Channel MOSFET
Datasheet	FQA8N100C Datasheet
Additional preview pages of the FQA8N100C datasheet.

📁 Similar Datasheet

FQA8N100C - MOSFET (Fairchild Semiconductor)
FQA8N80 - 800V N-Channel MOSFET (Fairchild Semiconductor)
FQA8N80C - 800V N-Channel MOSFET (Fairchild Semiconductor)
FQA8N80C_F109 - MOSFET (Fairchild Semiconductor)
FQA8N90C - 900V N-Channel MOSFET (Fairchild Semiconductor)
FQA8N90C_F109 - N-Channel QFET MOSFET (Fairchild Semiconductor)
FQA85N06 - 60V N-Channel MOSFET (Fairchild Semiconductor)
FQA020ADC-007-M - EMC Filters (TDK-Lambda)
FQA020ADC-007-S - EMC Filters (TDK-Lambda)
FQA020ADC-N07-S - EMC Filters (TDK-Lambda)

Other Datasheets by INCHANGE

FQA140N10 - N-Channel MOSFET
FQA24N50F - N-Channel MOSFET
FQA28N50F - N-Channel MOSFET
FQA70N15 - N-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

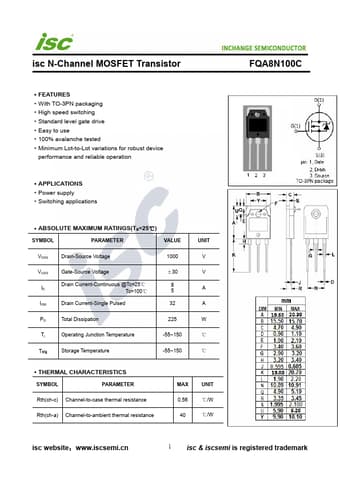

isc N-Channel MOSFET Transistor INCHANGE Semiconductor FQA8N100C ·FEATURES ·With TO-3PN packaging ·High speed switching ·Standard level gate drive ·Easy to use ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·APPLICATIONS ·Power supply ·Switching applications ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 1000 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous @Tc=25℃ Tc=100℃ Drain Current-Single Pulsed ±30 8 5 32 PD Total Dissipation 225 Tj Operating Junction Temperature -55~150 Tstg Storage Temperature -55~150 UNIT V V A A W ℃ ℃ ·THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel-to-case thermal resistance Rth(ch-a) Channel-to-ambient thermal resistance
