IPP60R360P7 - N-Channel MOSFET

INCHANGE

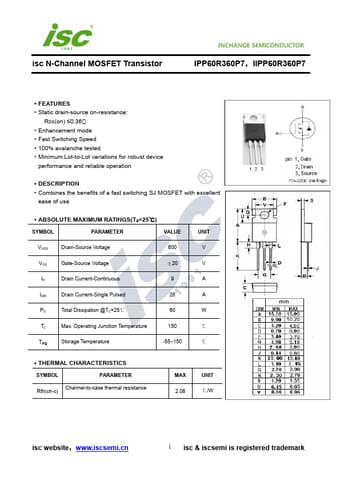

IPP60R360P7 Datasheet Preview — Preview of IPP60R360P7 PDF

Datasheet Details

Part number	IPP60R360P7
Manufacturer	INCHANGE
File Size	268.18 KB
Description	N-Channel MOSFET
Datasheet	IPP60R360P7-INCHANGE.pdf

IPP60R360P7 Product details

Description

Combines the benefits of a fast switching SJ MOSFET with excellent ease of use ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 600 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 9 IDM Drain Current-Single Pulsed 26 PD Total Dissipation @TC=25℃ 60 Tj Max.Operating Junction Temperature 150 Tstg Storage Temperature -55~150 UNIT V V A A W ℃ ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth(ch-c) Channel-to-case the

Features

br>.
Static drain-source on-resistance: RDS(on) ≤0.36Ω.
Enhancement mode.
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
