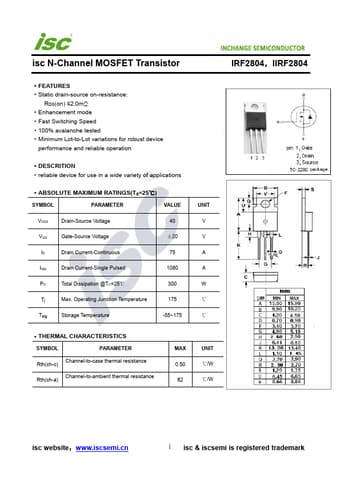

IRF2804 Datasheet, Mosfet, INCHANGE

IRF2804 Features

• Mosfet
• Static drain-source on-resistance: RDS(on) ≤2.0mΩ
• Enhancement mode
• Fast Switching Speed
• 100% avalanche tested
• Minimum Lot-to-Lot variations

PDF File Details

Part number:

IRF2804

Manufacturer:

INCHANGE

File Size:

241.92kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

IRF2804 Application

• Applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 40 VGS Gate-Source Voltage ±20 ID
